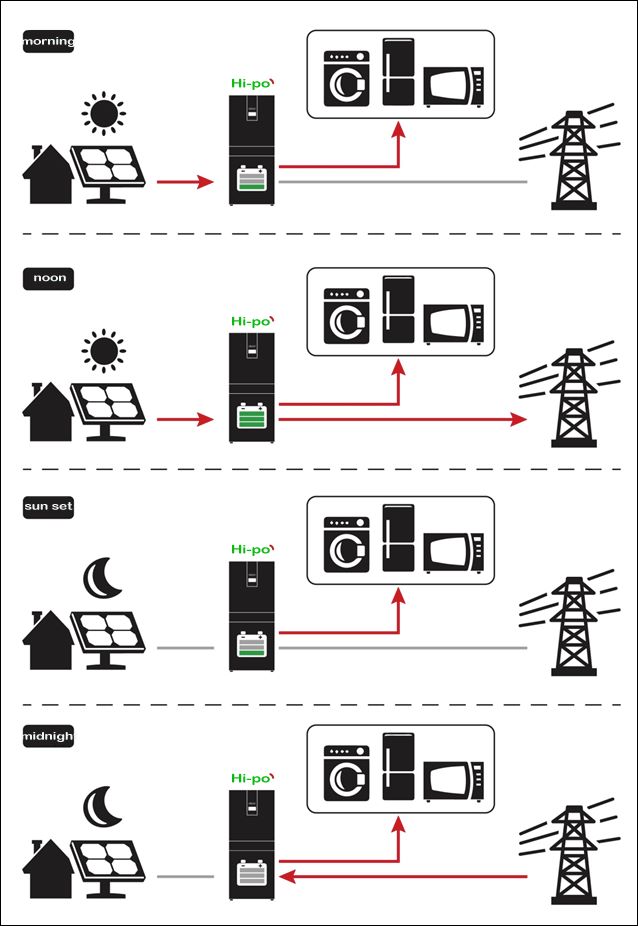

Smart working mode (programable)
| morning |
The electricity generated by photovoltaics is preferentially used for
household loads, and the remaining amount is used for battery charging.
When the grid electricity price is in the peak period, the storage
battery supplies power to the load |
| Noon |
When the battery is fully and the household load is small, the
photovoltaic power generation margin is sent to the public grid |
| sunset |
When the sun goes down, the system automatically switch to the battery
to supply power to the load |
midnight |
When the battery power does not meet the household load requirements, the
public grid provides power to the load. When the grid price is in the
valley, the public grid will charge the battery |

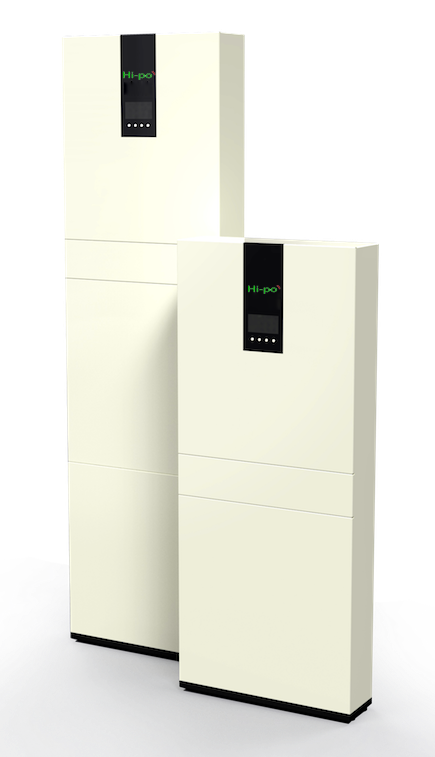

Lithium-ion battery series parameters
| Parameters |
Hi-Po 4KL |
Hi-Po 4KL Plus |
| Rated output power |
4000W |
Rated output power |
4000W |
Photovoltaic input |
Maximum input power |
5000W |
Rated (maximum) input voltage |
360V(580VDC) |
Maximum power voltage range |
280~500VDC |
MPPT number/input current |
1/1*18A |
Battery |
Cell capacity(100%DOD) |
48V/100Ah |
48V/100Ah |
Number of batteries |
1 |
2 |
Battery cycle times |
3,000 |
Rated Capacity(100%DOD) |
5KW |
10KW |
charging current |
40A |
80A |
Overall voltage |
48VDC |
Current DC protection |
2P circuit breaker |
AC Output |
AC output voltage |
202/208/220/230/240VAC |
AC output voltage range |
184~265VAC |
Output current |
17.5A |
Output waveform |
Sine wave |
Output efficiency |
96% |
Power factor |
>0.99 |
AC Intput |
AC starting Voltage |
120~140VAC/180VAC |
Maximum AC input current |
40A |
Frequency Range |
50/60Hz |
Grid current protection |
2P circuit breaker |
Others |
Weight |
75Kg |
138Kg |
dimension |
1200mm*452mm*140mm |
1800mm*452mm*140mm |
Protection level |
IP32 |
cooling method |
Fan |
Support up to 6 machines in parallel Programmable priority setting: PV, battery,
gridMultiple operating
modes can be set: on-grid, off-grid, on-grid backup Efficient active balance,
effectively ensuring the consistency of the battery core
